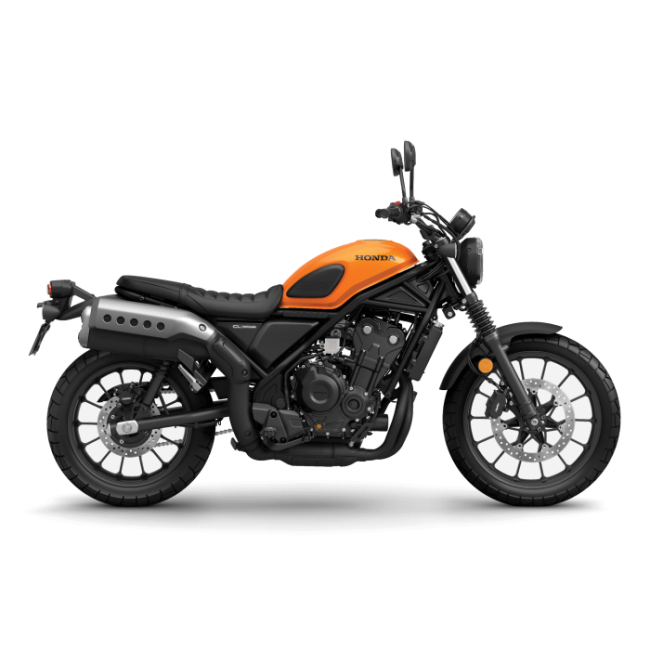

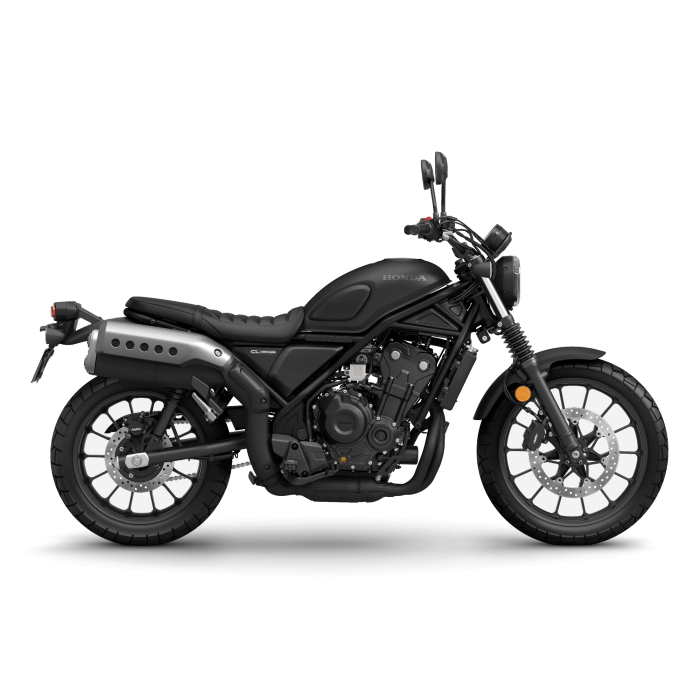

CL500 SCRAMBLER
Back in 1962 our very first street scrambler, the CL72, made its debut. We figured it was time for a new breed to roll out, made for the streets of today. Retro Scrambler styling with all the modern safety features. Our scrambler style starts with the 12L retro fuel tank with pads, blacked out engine and frame, rubber gaiters and, in true CL tradition, a twin pipe exhaust muffler, with a distinctive stainless heat shield.
Producing a healthy 43.4Nm torque, the LAMS approved twin-cylinder engine has been tuned for crisp response and smooth acceleration. The CL500 drips with style and detail that only comes with long history, and begs to be ridden, customised and enjoyed.
Whether your ride takes you on the main road or the back roads, ride your way.
- Strong Torque & power delivery - 471cc fuel injected twin-cylinder engine with a 180 spinning crank

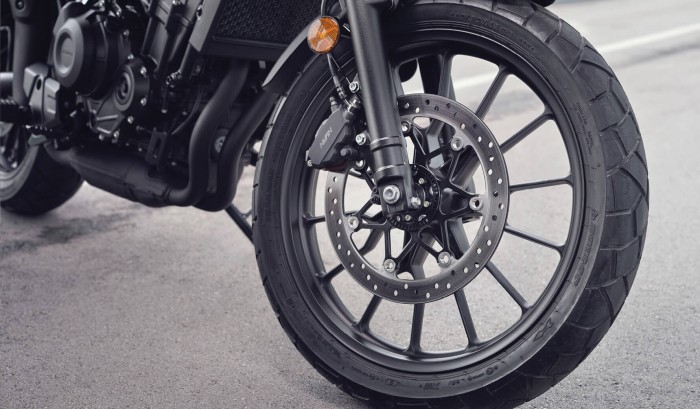

- Added safety - Front & rear disc brakes, combined with standard Anti-lock Braking System (ABS)
- Scrambler aesthetics - Featuring rubber gaiters, tank knee pads, retro flat seat and the iconic high-level muffler.

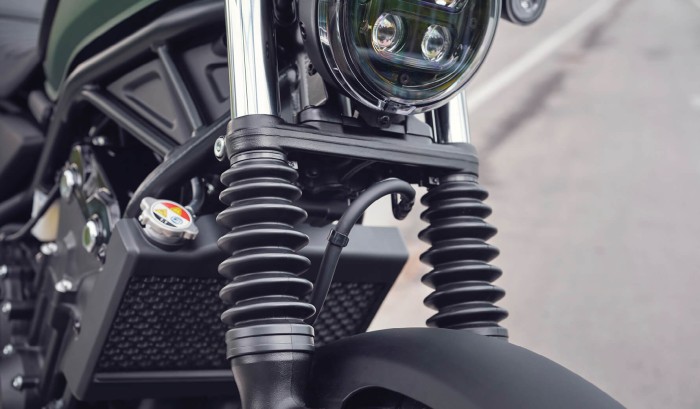

- Premium handling - Telescopic 41mm Upright forks with 150mm of travel, rear twin 45mm round pipe swingarm with 5-step pre-load adjustment.

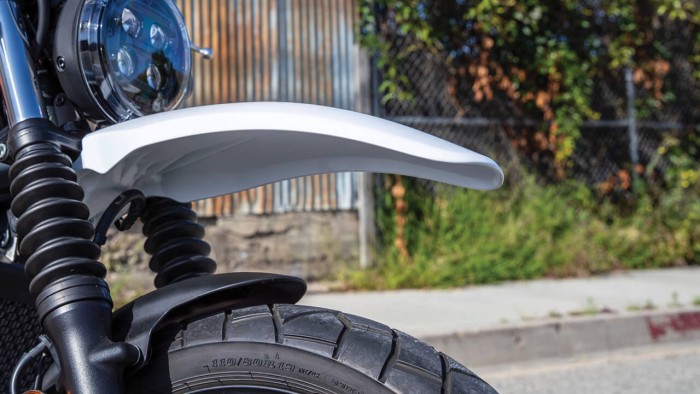

included Genuine accessories
TAKE A CLOSER LOOK
YOUR BIKE IN DETAIL
Engine Type | Liquid-cooled DOHC 4-stroke |
Displacement (CC) | 471cc |
Cylinders | Inline Twin |
Valves | 8 |
Bore and Stroke | 67 x 66.8 |
Compression Ratio | 10.7:1 |
Ignition | Electric |
Fuel System | PGM-Fi=I Electronic Fuel Injection |
Max Power (kW / Hp) | 34.3 |
Max Torque (Nm) | 43.4 |
Starter | Electric |
Final Drive | Chain |
Transmission | 6 Speed Manual Transmission |

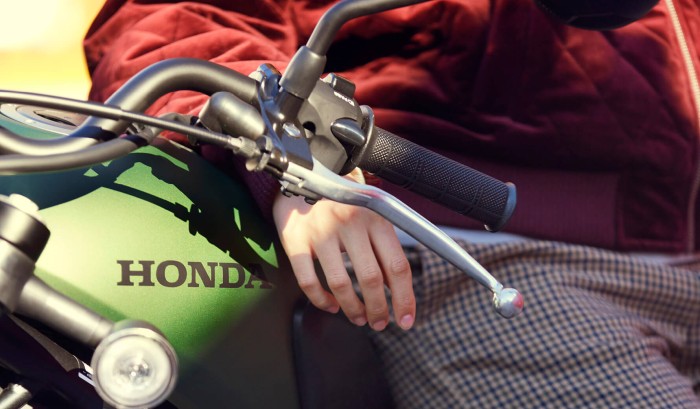

Clutch | Wet multiplate Hydraulic Assisted slipper clutch |
Suspension Front | Telescopic 41mm Upright forks |
Front Wheel Travel (mm) | 134 |
Suspension Rear | Twin shock with 45mm round pipe swingarm, 5-step pre-load adjustment |
Rear Wheel Travel (mm) | 145 |
Brakes Front | Single 310mm floating disc, 2 piston calipers |
Brakes Rear | Single 240mm disc, 1 piston caliper |
Tyres Front | 110/80R19M/C 59H |
Tyres Rear | 150/70R17M/C 69H |
Rake Caster Angle | 27° |
Minimum Turning Radius (m) | 2.6 |
Wheelbase | 1485mm |
Seat Height | 790mm |
GroundClearance | 155mm |
Trail | 108mm |
Kerb Weight | 192 kg |
Fuel Capacity | 12L |
Dimensions | 2175mm (L) x 830mm (W) x 1135mm (H) |

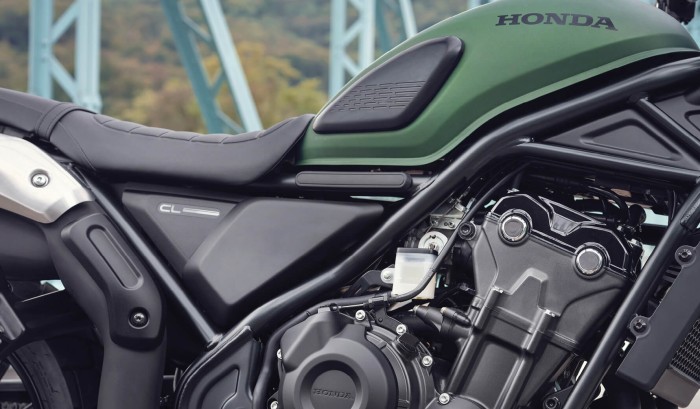

Frame | Steel diamond |
