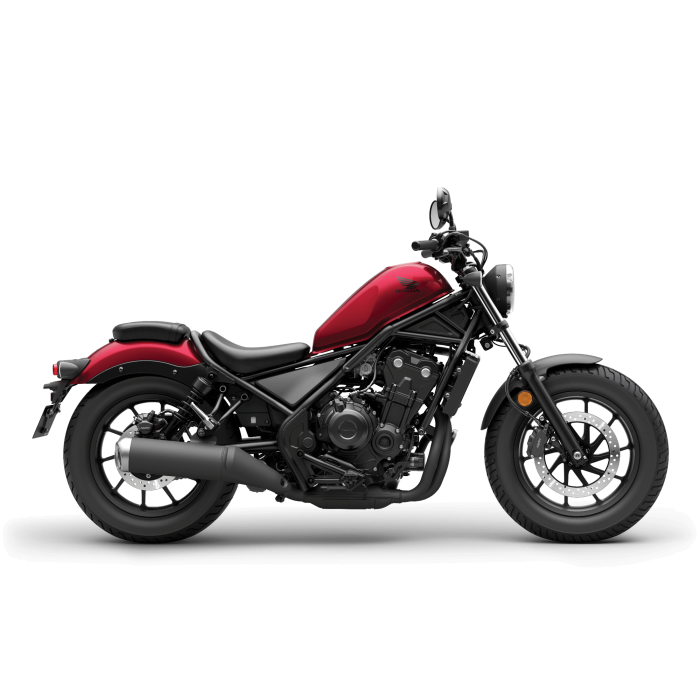

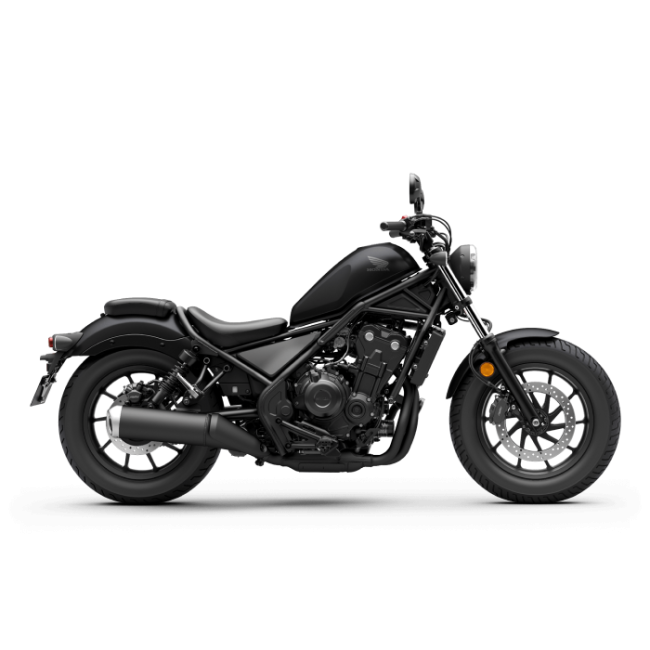

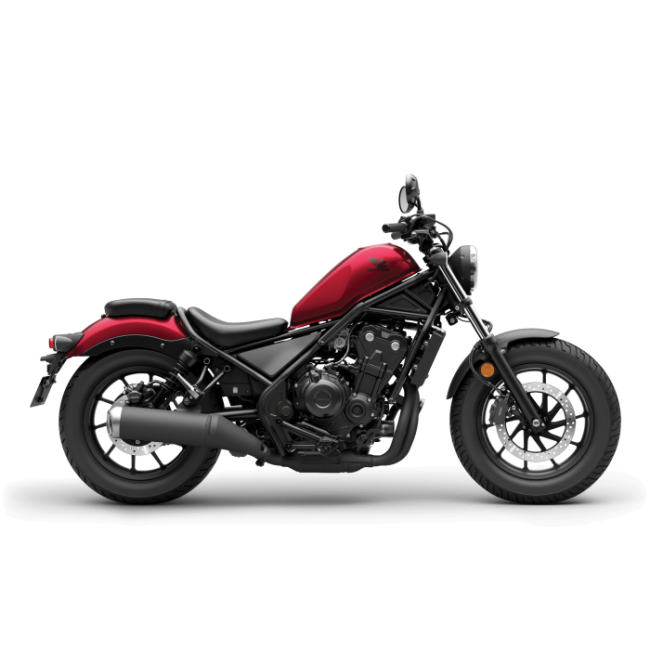

CMX500 Rebel
Raw, aggressive styling and a narrow, sexy frame. Everything you need and nothing you don't, the Rebel comes loaded with attitude from fender to fender. Blacked-out and stripped down quality components around a rising fuel tank deliver its signature aggressive stance and a fat tyre provides a powerful presence.
LAMS approved and ready to get you riding in style the CMX500 Rebel is the perfect first bike. It is also ideal for cost effective cruising and commuting, around town or on the open road for riders of all skill levels.
Some images may show overseas models. Refer to colour selector or talk to your local dealer for current model and colour availability.
-
Blacked Out Style
-
LAMS Approved
-

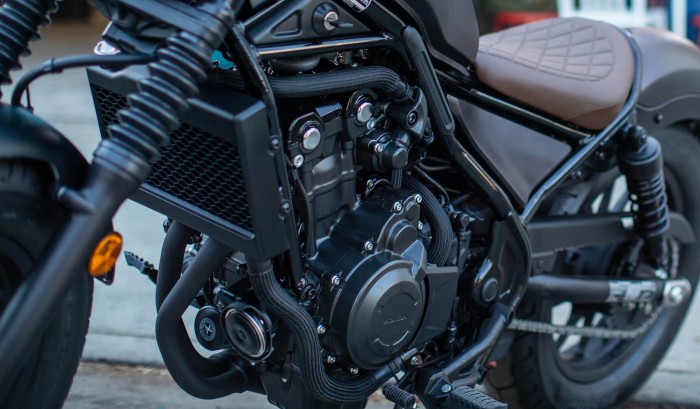

Twin-Cylinder Engine
Features
Lightweight Cruiser
The Rebel 500 is a lot more fun and friendly to ride than some bigger machines - perfect if you're just getting started, or if you're looking for a nimble bike. The light overall weight and a low center of gravity help performance too.
| Engine Type | Liquid-cooled DOHC parallel-twin 4-stroke |
| Engine Displacement | 471 cc |
| Bore and Stroke | 67.0mm x 66.8mm |
| Compression Ratio | 10.7:1 |
| Ignition | Full-transistorized type |
| Fuel System | Programmed fuel injection (PGM-FI) |
| Cylinders | 2 |
| Valves | 8 |
| Starter | Electric |
| Final Drive | Chain |
| Transmission Type | Manual 6-speed |
| Clutch | Wet multiplate, assisted slipper clutch |
| Suspension Front | 41mm telescopic forks |
| Front Wheel Travel | 121 mm |
| Suspension Rear | Twin shocks with preload adjustability |
| Rear Wheel Travel | 95 mm |

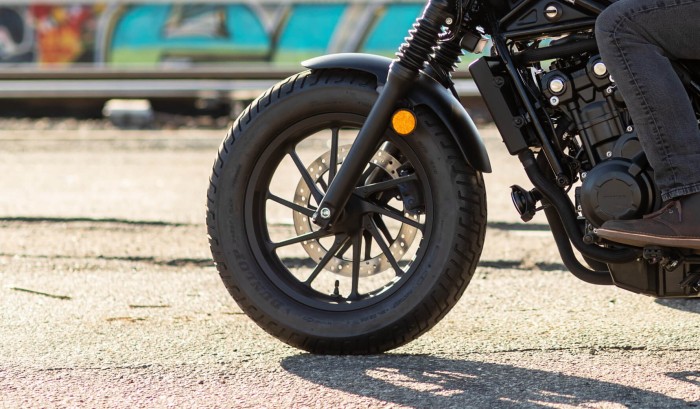

| Brakes Front | Single 296mm hydraulic disc with ABS |
| Brakes Rear | Single 240mm disc with ABS |
| Tyres Size Front | 130 / 90 - 16 |
| Tyres Size Rear | 150 / 80 - 16 |
| Wheelbase | 1490 mm |
| Ground Clearance | 135 mm |

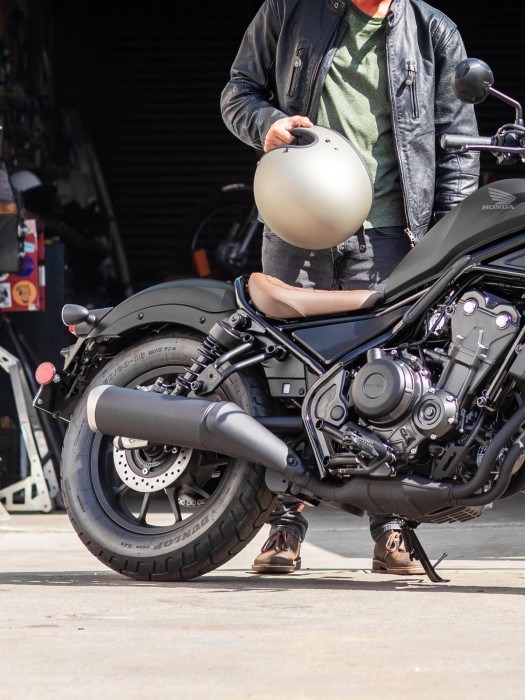

| Seat Height | 690 mm |
| Trail | 110 mm |
| Kerb Weight | 190 kg |
| Fuel Capacity | 11.2 litres |
| Length | 2205 mm |
| Width | 820 mm |
| Height | 1090 mm |

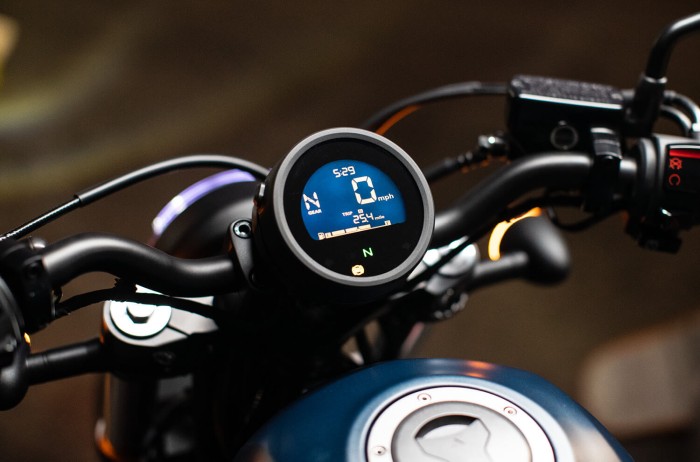

| Instruments | Digital |

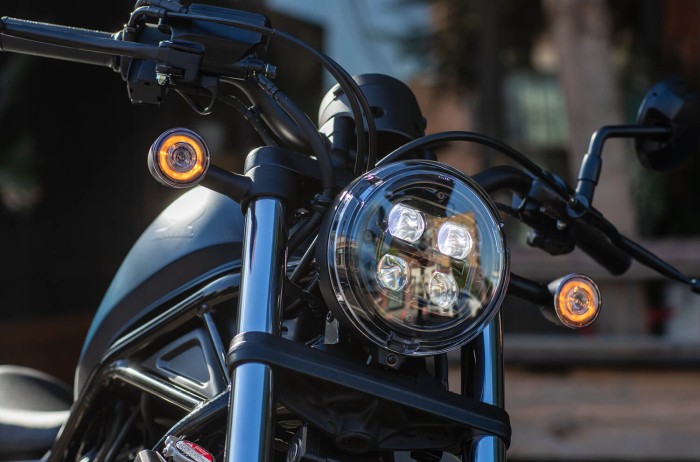

| Headlight | LED |
| Tail Light | LED |
| LAMS Approved | Yes |
