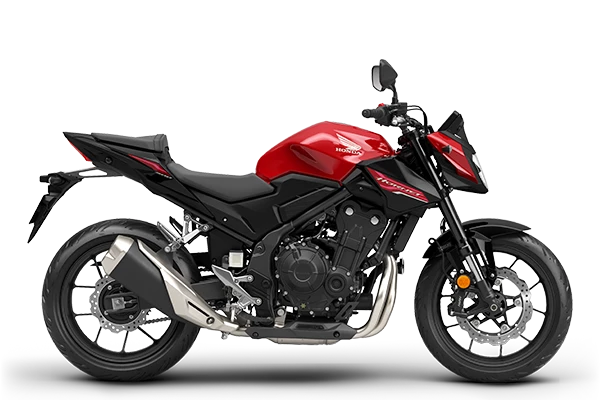

CB500F
Explore all the city has to offer. And do it in style. The CB500F mixes naked-bike agility with a streetfighter attitude. Showa Separate Function Fork-Big
Piston (SFF-BP) USD front suspension and dual front discs take handling and braking to the next level, while the LAMS compatible twin-cylinder engine provides performance that new and experienced riders can enjoy. Sharp new graphics are the perfect finishing touch to the CB500F.
The riding position places you naturally upright, and in charge, while seat height is low at 785mm. In an urban environment, your bike needs
to react quickly to every input you make. So, we’ve given the chassis a more forward-set weight bias, for improved grip and feel. Showa
USD forks give superb response and dual 296mm discs gripped by four-piston radial-mount calipers offer powerful braking. Lightweight
wheels and swingarm add even more agility. This 35kW twin-cylinder has performance to spare with 43Nm of torque in the mid-range
ensuring instant acceleration and, if you’re in the mood for fun, the exhaust howls pleasingly as rpm rises. Perfect for new riders
and entertaining for those with much more experience.
- Lightweight and nimble - 190kg and 785mm seat height
- Responsive and economical - 471cc fuel injected twin-cylinder engine
- Premium handling - 41mm Showa inverted forks and rear Pro-Link suspension with adjustable pre-load
- Added safety - Front and rear disc brakes, combined with standard Anti-lock Braking System (ABS)
TAKE A CLOSER LOOK
YOUR BIKE IN DETAIL
Engine Type | Liquid cooled DOHC Parallel Twin |
Displacement (CC) | 471cc |
Cylinders | 2 |
Valves | 8 |
Bore and Stroke | 67mm x 66.8mm |
Compression Ratio | 10.7:1 |
Ignition | Electric |
Fuel System | Fuel Injection |
Starter | Electric |
Gearbox | |
Final Drive | Chain |
Transmission | 6-speed |
Suspension Front | 41mm telescopic fork |
Suspension Rear | Single shock |
Brakes Front | 2x 296mm disc, ABS |
Brakes Rear | 1x 240mm disc, ABS |
Tyres Front | 120/70-17 |
Tyres Rear | 160/60-17 |
Wheelbase | 1,410mm |
Seat Height | 789mm |
GroundClearance | 145mm |
Kerb Weight | 189kg |
Fuel Capacity | 17.1 Litres |
Dimensions | 2080mm (L) x 800mm (W) x1,060mm (H) |
